Reel & coil tilter

Tilter machine for reels and coils

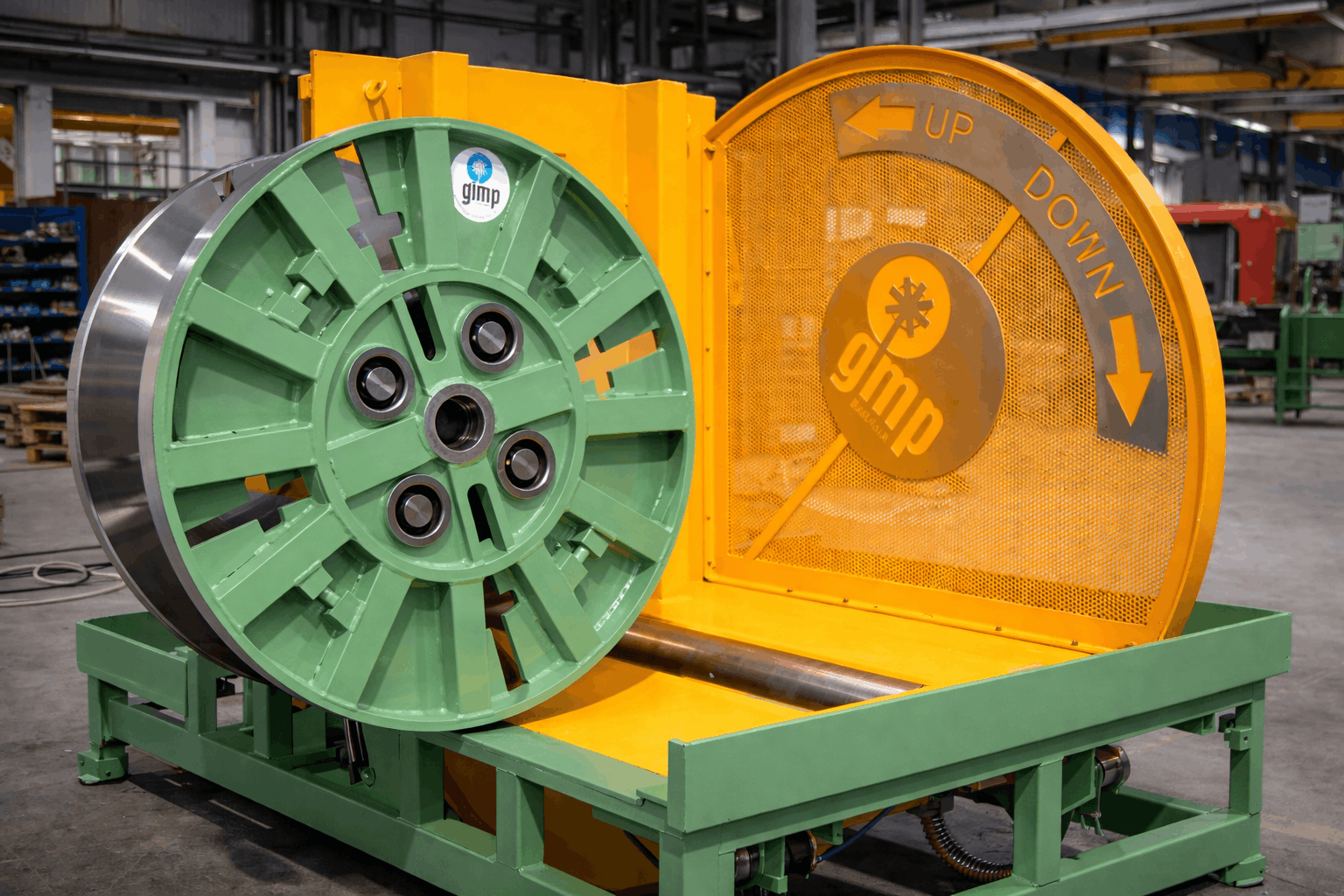

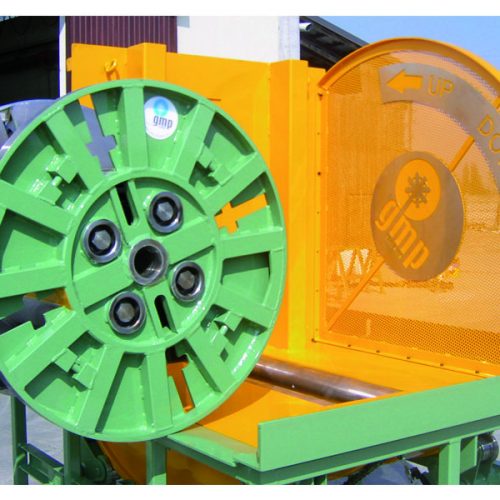

The tilting unit type TU/M can carries reels or coils up to 5 tons.
TU/M works by transmitting the movement from the motor to the tilting table by a chain.

TU are provided with safety barriers (hardware and optical) and with all the documentation requested by law (CE mark).
The design of the lay-out is always done according to customer’s request.

This equipment must be placed in ground, this work is designed by the technical team of GMP Reels.

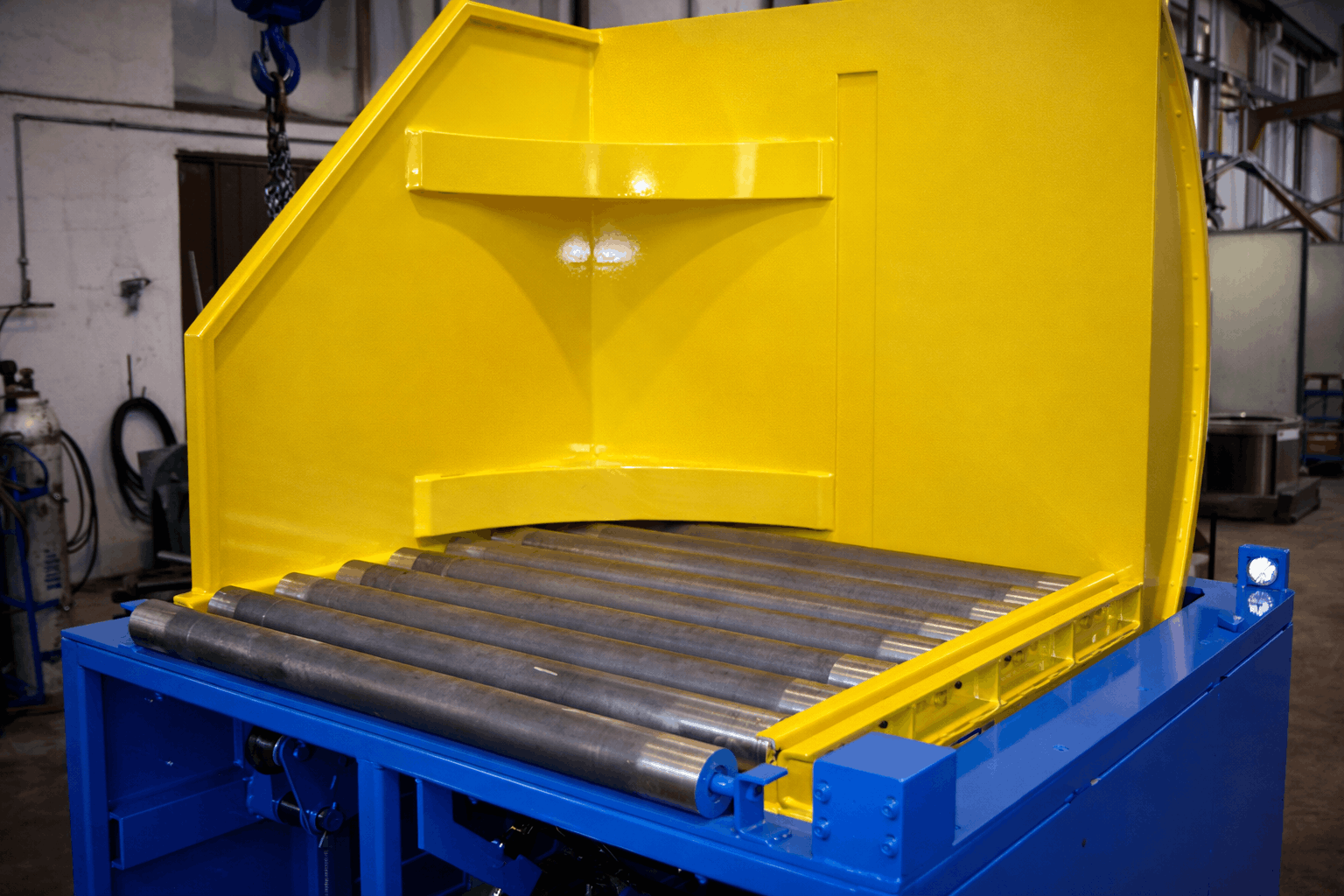

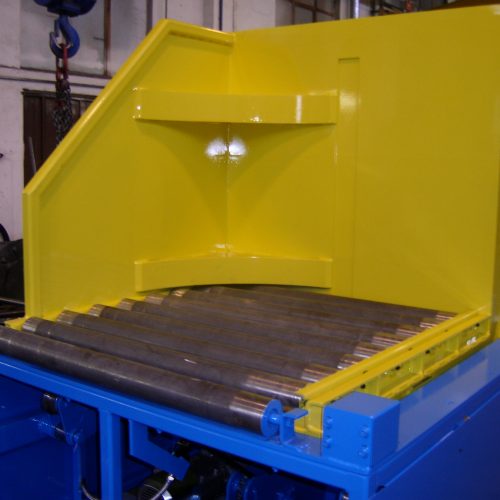

It is possible to supply a rolling system, where the operator can place the reel in horizontal axis position for the strapping operation.
A large range of colors is available.
